X30 Built-In Fire Pit

    This Built-In Fire Pit Kit Includes:

  • 1 – X30 Fire Pit – Steel of Your Choice
  • 1 – X30 Insert Ring

    Specifications:

  • Fits any opening that is at least 15″ deep and 34″-39″ wide
  • Stone surround is NOT included
  • Compatible with the Outpost grilling system
  • Use with wood up to 24″ long
Made in the USA Badge.
Limited Lifetime Warranty Badge.

Description

X30 Built-In Fire Pit

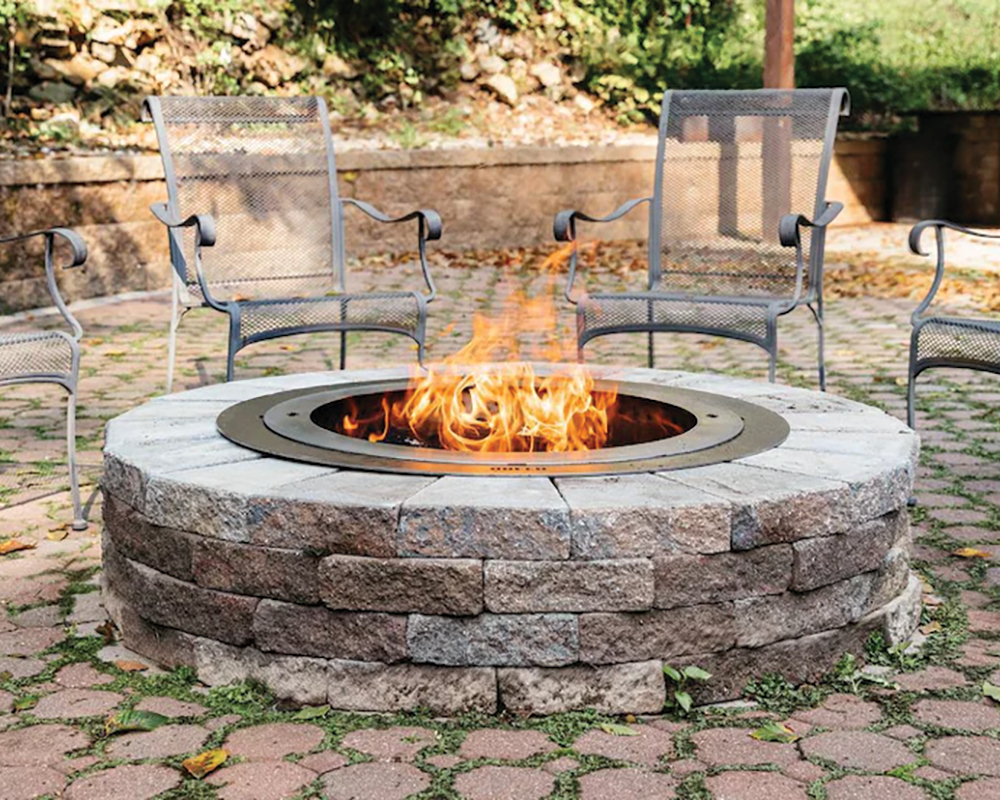

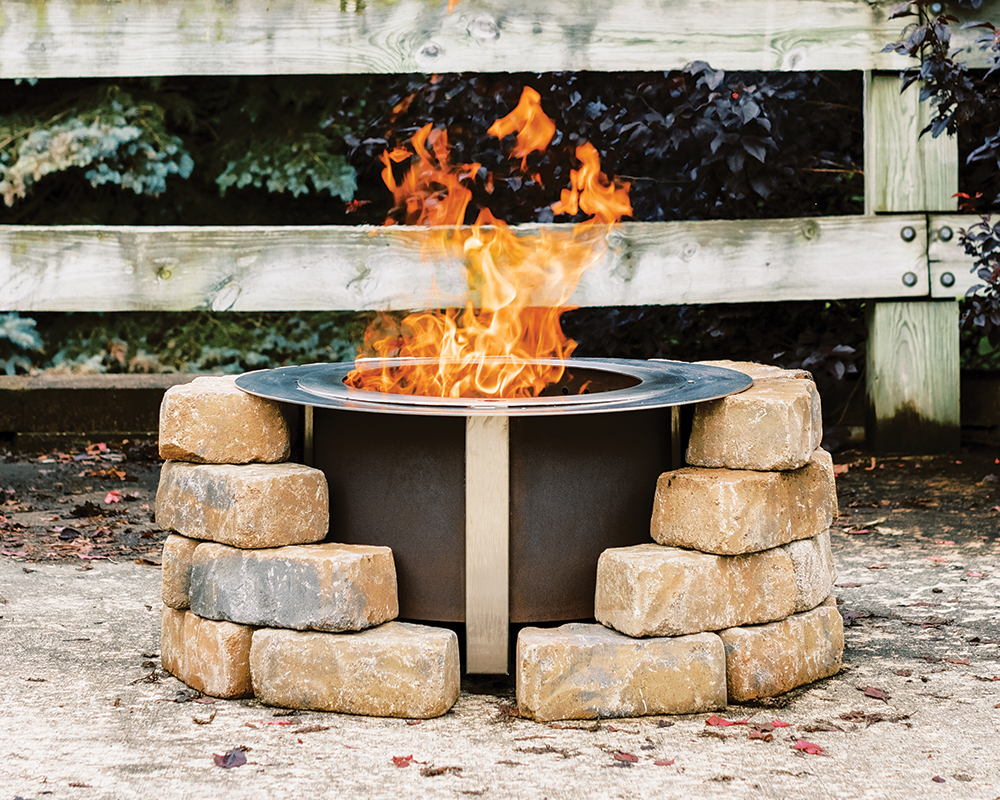

• Smokeless In Style: Use the insert ring to place your fire pit into any stone surround, creating a stunning masterpiece in your backyard. Vents around the insert ring allow airflow for a smokeless burn and double as notches to hold your fire pit secure. Stone surround is not included.

• Impermanent Location: Easily remove the fire pit from the insert ring and stone surround for campfires away from home.

• Ultimate Compatibility: The X30 boasts 2 Outpost rod holes and is compatible with almost all of Breeo’s live-fire cooking accessories! From the popular Outpost grill to the latest and greatest pizza oven, use the X30 to unleash the flavor that only a campfire gives!

• Corten Steel: Corten steel arrives with a dark blue steel look that develops a patina over time when exposed to the elements. Over the first year and beyond, your corten steel fire pit will transform into a reddish iron oxide patina.

• Smokeless Technology: The X series features a double wall construction and secondary combustion holes for a smokeless burn.

X30 Built-In Fire Pit.

What Makes Them Smokeless?

Fires smoke for 3 reasons: lack of heat, lack of oxygen, or the wrong fuel. The key to a smokeless system is creating more airflow and burning a hotter fire. So, what does smokeless mean exactly? Simply, it means less smoke. Breeo® fire pits are engineered to drastically reduce their smoke output, saving your eyes and the environment simultaneously.

Step 1 – X Airflow

The X Airflow raised vent design on the bottom of the fire pit enables oxygen to feed the fire even after significant ash build up.

Step 2 – Double Wall Technology

Air enters a cavity at the bottom into the double wall while the fire heats the walls. Hot air rises through the gap between the two walls as the fire burns.

Step 3 – Secondary Combustion

The hot air then exits the double wall through holes around the rim. This pressurized, heated oxygen mixes with the smoke and causes secondary combustion or reburn.

Easton Store Front

X30 Fire Pit Dimensions

Outside Diameter of Rim: 34.5″
Outside Diameter of Bowl & Legs: 33.62″
Inside Diameter of Bowl: 29.5″
Inside Diameter of Rim: 28″
Inside Height: 11.38″
Total Height: 14.75″
Rim Width: 3.25″
Weight: 94lbs.



X30 Dimensions Spec Sheet.

Install Instructions

Lifting and lowering your X30 smokeless fire pit into the insert ring is a two-person job – we recommend the help of a friend.

Step 1

Breeo Insert Step 1.

Make sure your fire pit coping is within the recommended size range. The X30 fire pit requires an opening between 34″ and 39″.

Step 2

Breeo Insert Step 2.

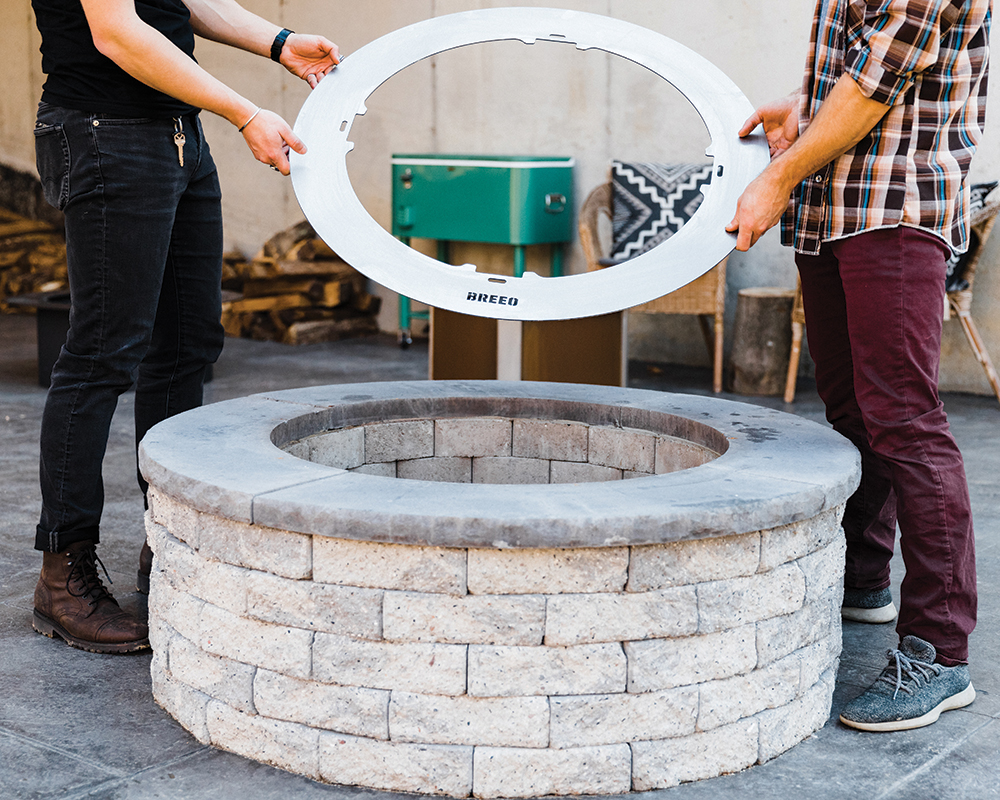

Center the insert ring on the opening.

Step 3

Breeo Insert Step 3.

Line up the legs of your X30 smokeless fire pit with the notches on the insert ring.

Step 4

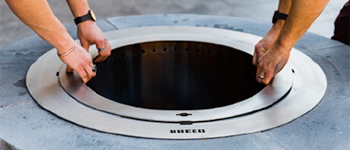

Breeo Insert Step 4.

Lower your X30 fire pit into the insert ring until the rim lays flat on the edge of the insert ring.
